Артикул TTF-EN-308
Серия СВЧ SiP-чипов
Продукция TTF Electronic. Серия СВЧ SiP-чипов. Характеристики — на странице серии.
- Категория
- Чипсетные решения, Чипсеты T/R
- Модель
- TTF-EN-308
|
Модель |
Мощность |
Каналы |
КПД |
Усиление приёма |
Точность фазы |
Коэффициент шума |
|
BF0713 TR0812P33X |
2W |
4 |
≥30% |
≥31dB |
RMS≤3° |
≤2.6dB |
|
BF0713 TR0812P36X |
4W |
4 |
≥30% |
≥31dB |
RMS≤3° |
≤2.6dB |
|
BF0713 TR0812P37X |
6W |
4 |
≥30% |
≥31dB |
RMS≤3° |
≤2.6dB |
|
BF0713 TR0812P39X |
8W |
4 |
≥30% |
≥31dB |
RMS≤3° |
≤2.6dB |
|
BF0713 TR0812P40X |
10W |
4 |
≥30% |
≥31dB |
RMS≤3° |
≤2.6dB |

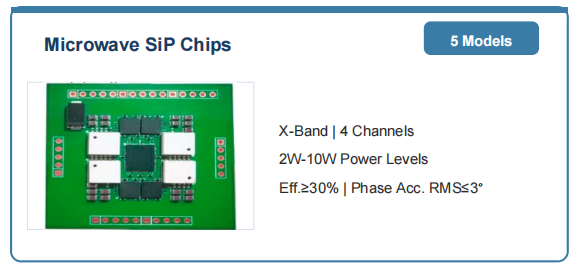

Microwave SiP Chip Серия
Обзор
This microwave SiP chip series is developed using advanced hybrid integration technology, integrating beamforming chips and RF transceiver chips into a single package. Typically, one beamforming chip and four RF transceiver chips are integrated to form a complete transmit/receive chipset, enabling beam control, power amplification, and microwave reception functions. The series is designed for two-dimensional active phased array antennas.
Особенности
Lightweight design , Modular architecture,Customizable solutions

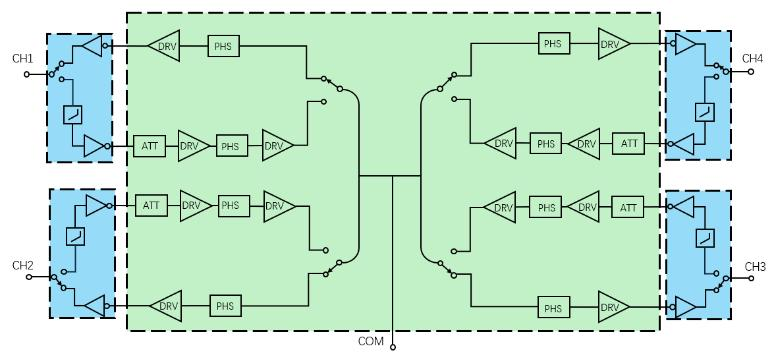

SiP-чипы и структурные схемы
|
|
|
